| Brand Name : | Haisic |
| Model Number : | HS-TQ51.2V/280AH/TQS5KW |
| Certification : | CE,FCC,ROHS,MSDS,UN38.3 |
| Price : | USD1695-USD1725 |
| Payment Terms : | L/C, D/A, T/T, Western Union, MoneyGram, |
| Supply Ability : | 3000PCS/month |
| Delivery Time : | 35-45days |
Product name:

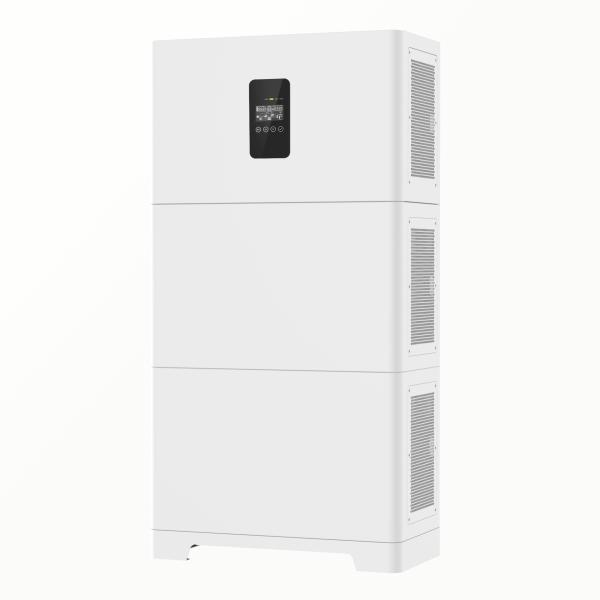

5KW Inverter 14.336KWh Energy Storage Battery For Home Solar System
Spec:
| Module Number | HS-TQ51.2V/280AH/TQS5KW |
| Rated Voltage(V) | 25.6v*2pcs=51.2V |
| Rated Capacity(Ah) | 280AH |
| Voltage Range(V) | 44.8-56v |
| Rated Energy(Wh) | 14336Wh |
| Recommend charge current(A) | 25A |
| Max Charge current( A) | 150A |
| Max Discharge current( A) | 150A |
| Battery Dimension:(L*W*H) | L556*W264*H680mm,111.2KG |
| AC Output power | 5.5KW( L+N+PE) |
| AC Output Volt | 230V ( 90~280V) |
| AC Input | 230V 40A MAX |
| MPPT input | 120~430Vdc,20A MAX |
| Display | LCD |
| Terminal | screw fixed |
| Charge Temperature Range(℃) | 0-45℃ |
| Discharge Temperature Range(℃) | -20~60℃ |
| Cycle Life | ＞6000 times(0.5C@ 25℃,80% DOD) |
Feature:
1. This storage battery is all in one off-grid low voltage power solution that includes inverter 5kw and LPF battery 14.336KWh storage system.
Won't worry inverter and battery compability issue, Inverter and BMS solution all are designed by our Strong R&D team.
2. Long Life and safety, vertical industry integration ensures more than 5000cycles with 80%DoD.
3. Easy to install and use, integrated inverter design, easy to use
and quick to install for off-grid solar energy system.
Images:
Shenzhe New Hong Energy Co.,Ltd(www.portable-powers.com),
Our factory to produce battery pack products in Dapeng,Shenzhen since 2011. R&D engineers: 30persons, provide one-stop service from ID design, structure design,molding, electrical design, packaging design&assembly and packaging.
|
|
