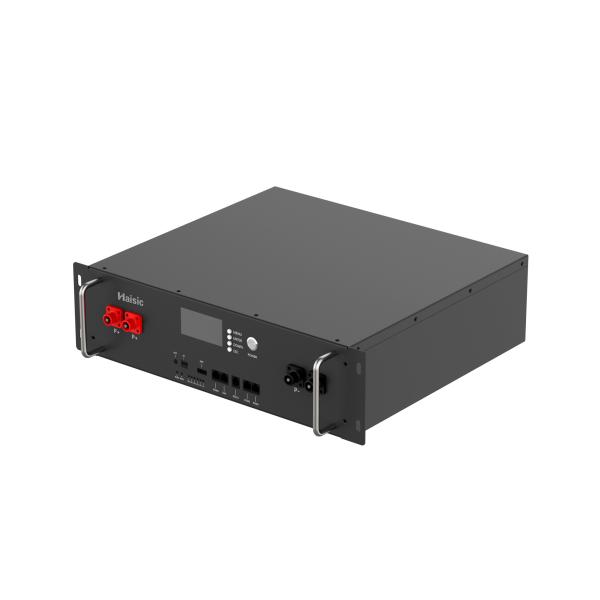

Rackable storage battery 51.2V 70Ah 100Ah ESS for home energy storage system

Ask Lasest Price
Brand Name :	Haisic
Model Number :	HS-GS3000W
Certification :	CE,FCC,ROHS,MSDS,UN38.3
Price :	USD605-USD865
Payment Terms :	L/C, D/A, T/T, Western Union, MoneyGram,
Supply Ability :	2000PCS/month
Delivery Time :	35-45days

Add to Cart

Product Details
Company Profile

Rackable storage battery 51.2V 70Ah 100Ah ESS for home energy storage system

Server Rack desgined LiFePO4 Battery Pack 3.5kWh-21.5kWh (51.2V 70Ah/100Ah 3U module)

Spec:

Model No.	HS-BG3000W
Rated Voltage(V)	51.2V
Rated Capacity(Ah)	70Ah
Rated Energy(Wh)	3584Wh
Voltage Range(V)	44.8-56V
Charge Voltage Range(V)	55.2-56V
Cut-off Voltage(V)	44.8V
Recommend Charge Current(A)	30A
Max Charge Current(A)	60A
Max Discharge Current(A)	60A
Dimension:LWH(mm)	370420120mm
Weight(kg)	32kg
Communication Port	RS485,CAN
Display	LED+LCD
Terminal	Plug-in
Compatible inverter	Growatt,Goodwe,Sol-Ark,SRNE,DEYE
Humidity(%)	5-95% RH
Charge Temperature Range(℃)	0-45℃
Discharge Temperature Range(℃)	-20~60℃
Storage Temperature Range(℃)	-20~45℃
Cycle Life	＞6000 times(0.5C@ 25℃,80% DOD)
Design Life (Year)	15years
Safety & Certification	CE,EMC,TUV(IEC62619),UL1973
Transportation	UN38.3,MSDS

Feature:

1. It's a Server Rack designed 48V Lithium-Ion Phosphate (LiFePo4)rechargeable battery pack with Battery Management System integrated, nominal voltage at 48V, rated capacity at 100Ah, with ModBus/RS485 & CANBus & UART communication protocols.

2. Compatible with most major PV inverters, Such as Growatt, SRNE, MUST, Deye, GOODWE, SOFAR, Victron Energy...

3. With advanced technology, when paralleling up multi batteries, the system automatically assigns parallel slaves addresses, unlike others need manually dail the DIP Switch for the address assigning.

4. Supports parallel connection upto 6x modules, compatible with 3U Standard Server Rack.

5. This Solar Pv Photovoltaic Renewable Energy Storage System extremely long life cycle, more than 6000 times or 10 years.

6. High protection measures, built-in Aerosol active fire protection module, thermal runaway detection and active fire protection.

Images:

FAQ:

1. Are you factory or only company?

We have factory to produce battery products in Dapeng,Shenzhen since 2014,such as iPhone battery and portable power station and LFP battery. More info: also can check alibaba webiste: highspeedpower.en.alibaba.com.

2. Why we can choose you?

1)Professional-We have professional R&D team and overseas sales team,OEM/ODM project we can support well.

2)Flexibility-We manufacture portable power station at our own factory, as well we researched all most other reliable power station factory as well,can outsource and inspect carefully.

3)Focus- Since now and in future, we will focus on home and outdoor energy storage system, to cover off-grid and on-grid power system.

3. How about the price? Can you make it cheaper?

The price depends on the item your demand( battery capacity,order qty)

Final quotation according to receiving full description of the item you want. But quality is the priority,won't reduce price by lowering quality.

4. How about the sample time? What's the payment?

Sample time: 3-10days after confirmed.

Payment term: 50% deposit T/T in advance, balance paid before shipment.
