| Brand Name : | Haisic |
| Model Number : | HS-BG9500W |
| Certification : | CE,FCC,ROHS,MSDS,UN38.3 |
| Price : | USD1545 |
| Payment Terms : | L/C, D/A, T/T, Western Union, MoneyGram, |
| Supply Ability : | 3000PCS/month |
| Delivery Time : | 35-45days |
Product name:

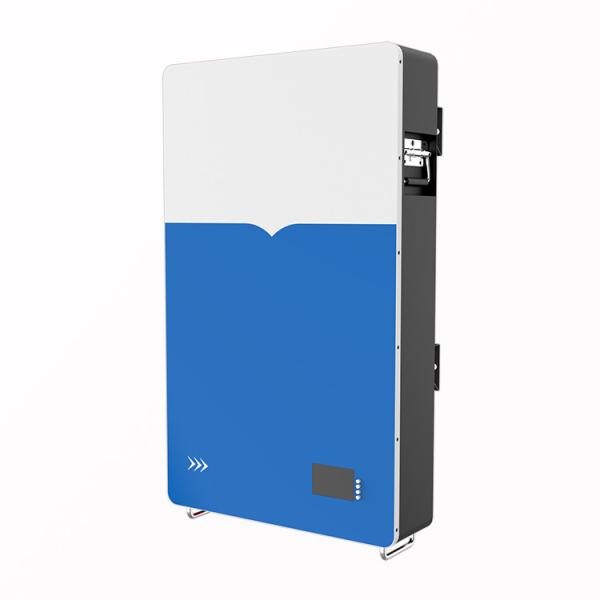

Home energy storage systems on grid 51.2V 186Ah LiFePO4 battery 9.5KW

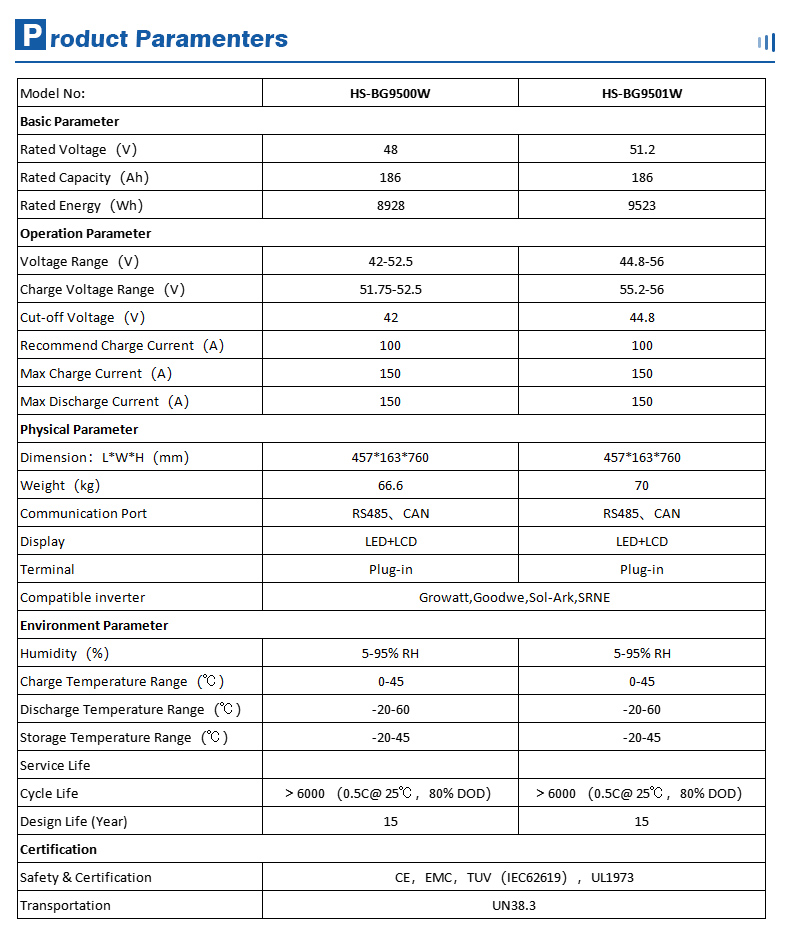

Spec:
| HS-BG9500W | |||
| |||
| Rated Voltage(V) | 51.2 | ||
| Rated Capacity(Ah) | 186 | ||
| Rated Energy(Wh) | 9253 | ||
| Operation Parameter | |||
| Voltage Range(V) | 44.8-56 | ||
| Charge Voltage Range(V) | 55.2-56 | ||
| Cut-off Voltage(V) | 44.8 | ||
| Recommend Charge Current(A) | 100 | ||
| Max Charge Current(A) | 150 | ||
| Max Discharge Current(A) | 200 | ||
| Physical Parameter | |||
| Dimension:L*W*H(mm) | 457*163*760 | ||
| Weight(kg) | 69 | ||
| Communication Port | RS485,CAN | ||
| Display | LED+LCD | ||
| Terminal | Plug-in | ||
| Environment Parameter | |||
| Humidity(%) | 5-95% RH | ||
| Charge Temperature Range(℃) | 0-45 | ||
| Discharge Temperature Range(℃) | -80 | ||
| Storage Temperature Range(℃) | -65 | ||
| Service Life | |||
| Cycle Life | ＞6000 (0.5C@ 25℃,80% DOD) | ||
| Design Life (Year) | 15 | ||
| Certification | |||
| Safety & Certification | CE,EMC,TUV(IEC62619),UL1973 | ||
| Transportation | UN38.3 | ||
Feature:
1. This is 48V/51.2V 100Ah Powerwall Battery, with Grade A quality LiFePO4 Battery. Safe - LFP Chemistry.
2. Wall-mounted metal housing design, MPPT technology for Smart Battery Charging, High Efficiency . support OEM/ODM service.
3. More compact volume and lighter weight. Solid handles for carrying
and moving.
4. Compatible with most inverters and chargers.
5. Excellent high temperature performance.
Images:
Shenzhe New Hong Energy Co.,Ltd(www.portable-powers.com),
Our factory to produce battery pack products in Dapeng,Shenzhen since 2011. R&D engineers: 30persons, provide one-stop service from ID design, structure design,molding, electrical design, packaging design&assembly and packaging.
|
|
