| Brand Name : | Haisic |
| Model Number : | HS-BG9500W |
| Certification : | CE,FCC,ROHS,MSDS,UN38.3 |
| Price : | 1545 |
| Payment Terms : | L/C, D/A, T/T, Western Union, MoneyGram, |
| Supply Ability : | 3000PCS/month |
| Delivery Time : | 35-45days |
Product name:

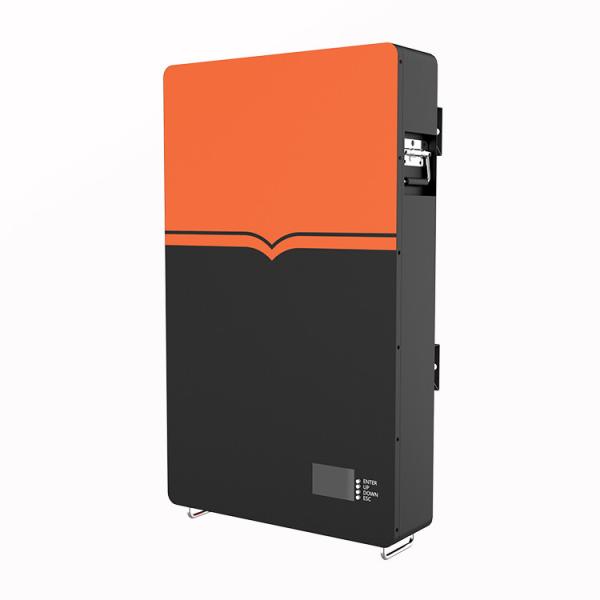

51.2V 186Ah lifepo4 ess home energy storage system OEM ODM supported
Spec:
| HS-BG9500W | |||
| |||
| Rated Voltage(V) | 51.2 | ||
| Rated Capacity(Ah) | 186 | ||
| Rated Energy(Wh) | 9253 | ||
| Operation Parameter | |||
| Voltage Range(V) | 44.8-56 | ||
| Charge Voltage Range(V) | 55.2-56 | ||
| Cut-off Voltage(V) | 44.8 | ||
| Recommend Charge Current(A) | 100 | ||
| Max Charge Current(A) | 150 | ||
| Max Discharge Current(A) | 200 | ||
| Physical Parameter | |||
| Dimension:L*W*H(mm) | 457*163*760 | ||
| Weight(kg) | 69 | ||
| Communication Port | RS485,CAN | ||
| Display | LED+LCD | ||
| Terminal | Plug-in | ||
| Environment Parameter | |||
| Humidity(%) | 5-95% RH | ||
| Charge Temperature Range(℃) | 0-45 | ||
| Discharge Temperature Range(℃) | -80 | ||
| Storage Temperature Range(℃) | -65 | ||
| Service Life | |||
| Cycle Life | ＞6000 (0.5C@ 25℃,80% DOD) | ||
| Design Life (Year) | 15 | ||
| Certification | |||
| Safety & Certification | CE,EMC,TUV(IEC62619),UL1973 | ||
| Transportation | UN38.3 | ||
Feature:
1. Wall-mounted metal housing design, MPPT technology for Smart Battery Charging, High Efficiency . support OEM/ODM service.
2.This is 48V/51.2V 100Ah Powerwall Battery, with Grade A quality LiFePO4 Battery. Safe – LFP Chemistry.
3. Long cycle life and service life.
4. Overcharge,over discharge and over temperature protection.
5. Low self discharge.
6. High energy intensity and conversion efficiency.
Images:
Shenzhe New Hong Energy Co.,Ltd(www.portable-powers.com),
Our factory to produce battery pack products in Dapeng,Shenzhen since 2011. R&D engineers: 30persons, provide one-stop service from ID design, structure design,molding, electrical design, packaging design&assembly and packaging.
|
|
