Product name:

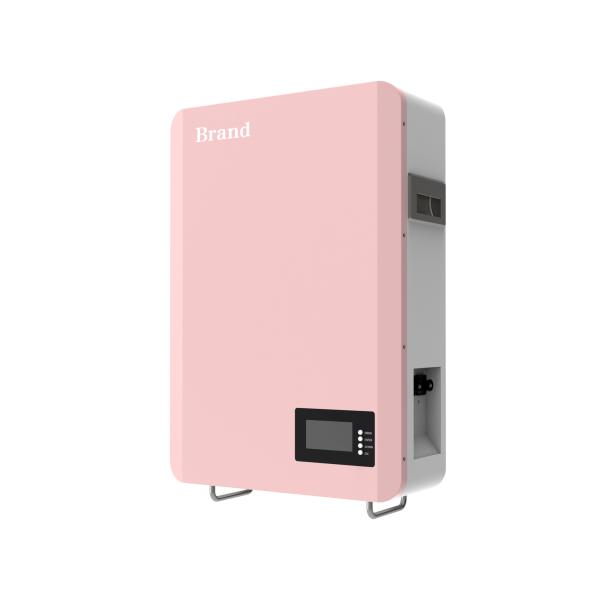

Power wall Off-grid 48V 60Ah LFP battery for solar home energy storage system
Spec:
| HS-BG3000W | |
| Basic Parameter | |
| Rated Voltage(V) | 51.2 |
| Rated Capacity(Ah) | 60 |
| Rated Energy(Wh) | 3072 |
| Operation Parameter | |
| Voltage Range(V) | 44.8-56 |
| Charge Voltage Range(V) | 55.2-56 |
| Cut-off Voltage(V) | 44.8 |
| Recommend Charge Current(A) | 30 |
| Max Charge Current(A) | 60 |
| Max Discharge Current(A) | 60 |
| Physical Parameter | |
| Dimension:L*W*H(mm) | 400*120*530 |
| Weight(kg) | 30 |
| Communication Port | RS485,CAN |
| Display | LED+LCD |
| Terminal | Plug-in |
| Environment Parameter | |
| Humidity(%) | 5-95% RH |
| Charge Temperature Range(℃) | 0-45 |
| Discharge Temperature Range(℃) | -80 |
| Storage Temperature Range(℃) | -65 |
| Service Life | |
| Cycle Life | ＞6000 (0.5C@ 25℃,80% DOD) |
| Design Life (Year) | 15 |
| Certification | |
| Safety & Certification | CE,EMC,TUV(IEC62619),UL1973 |
| Transportation | UN38.3 |
Feature:
1. Wall-mounted metal housing design, support OEM/ODM service.
2.This is 48V/51.2V Powerwall Battery, with Grade A quality LiFePO4 Battery.
3. One battery can be equipped with one set of connection cables. If buy 4pcs, we can match with 4pcs Battery with 4 set cabels for parallel connections.
4. Application for Toys, Power Tools, Home Appliances, Consumer Electronics, Solar/Wind Energy Storage.
can be used both on-grid and off-grid. It is also capable of being used for an on-grid battery backup.
Images:
Shenzhen new hong energy Co.,Ltd ( www.portable-powers.com),
Our factory produce battery products in Dapeng,Shenzhen since 2011. Main products include iPhone battery, portable power station and home energy storage system.
|
|
