| Brand Name : | Haisic |
| Model Number : | HS 500KW 1MWH |
| Certification : | CE, UL, FCC, RoHS |
| Price : | USD331000 |
| Payment Terms : | L/C, D/A, T/T, Western Union, MoneyGram, |
| Supply Ability : | 100000PCS/month |
| Delivery Time : | 60-90DAYS |
Product name: 500KW/1MWH BESS 20ft Hybrid Container Solar Storage Battery System
| Battery parameter | ||
| Cell type | LFP 3.2V/280Ah | |
| Battery pack capacity | 14.3KWh | |
| Cluster capacity | 200KWh | |
| Battery voltage range | 627V~806V | |
| Battery cluster number | 5 | |
| AC parameter | ||
| Rated AC power | 500KW | |
| Max. power | 550KW | |
| THDI | 3% | |
| DC component | ＜0.5%Ipn | |
| Rated grid voltage | 380V | |
| Power factor | ＞0.99 | |
| Power factor range | -1~1 | |
| Rated frequency | 50Hz | |
| System parameter | ||
| Max. efficiency | ≥96% | |
| Charge/discharge speed | 0.5C | |
| Discharge depth | 95%DOD | |
| Cycle times | 6000 | |
| Charge/discharge switching time | ＜100ms | |
| Comm. port | RS485 | |
| Protection level | IP54 | |
| Cooling | force fan cooling | |
| Temperature | -25℃~55℃ | |
General
Capacity: 500KW/1MWh；
BESS uses 20 feets standard containner; The container has battery compartment (battery cluster, BMS, illuminating system, air conditioner system, fire safety system and surge protection devices etc...); AC compartment (PCS, EMS, Transformer, Switches, Busbar, Cables etc...).

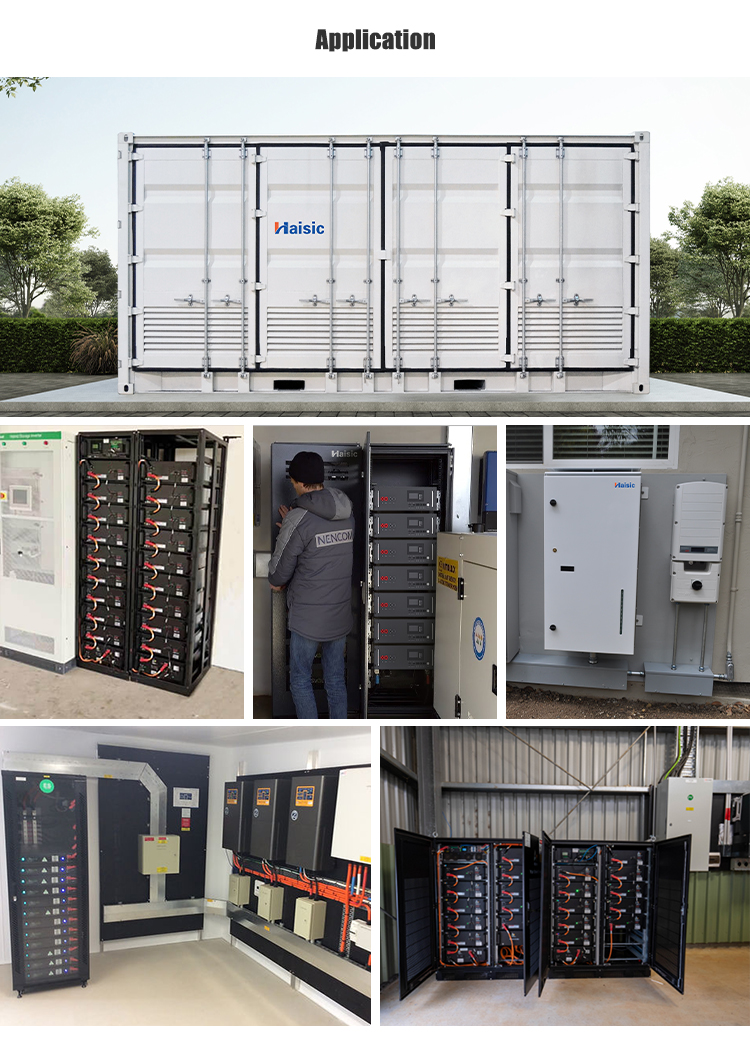

BESS can be using for peak shaving, energy back up, virtual capacity increase...
PCS Capacity
Total PCS capacity is 500KW; which contains 5*100KW PCS. Every single PCS connects to 1 battery cluster.
Battery cluster
280AH cell;
Battery Pack:1P16S,280AH×3.2V×16=14.3kWH; 3.2*16=51.2V
Battery cluster:1P14S,14×14.3=200.2kWh; 51.2V*14=716.8V
1 battery cluster is 200kWH, total system is 1MWh, contains 5 battery clusters.
|
|
