| Brand Name : | Haisic |
| Model Number : | HS-50kw 76kwh |
| Certification : | CE, UL, FCC, RoHS |
| Price : | USD34800 |
| Payment Terms : | L/C, D/A, T/T, Western Union, MoneyGram, |
| Supply Ability : | 200PCS/month |
| Delivery Time : | 45-60DAYS |

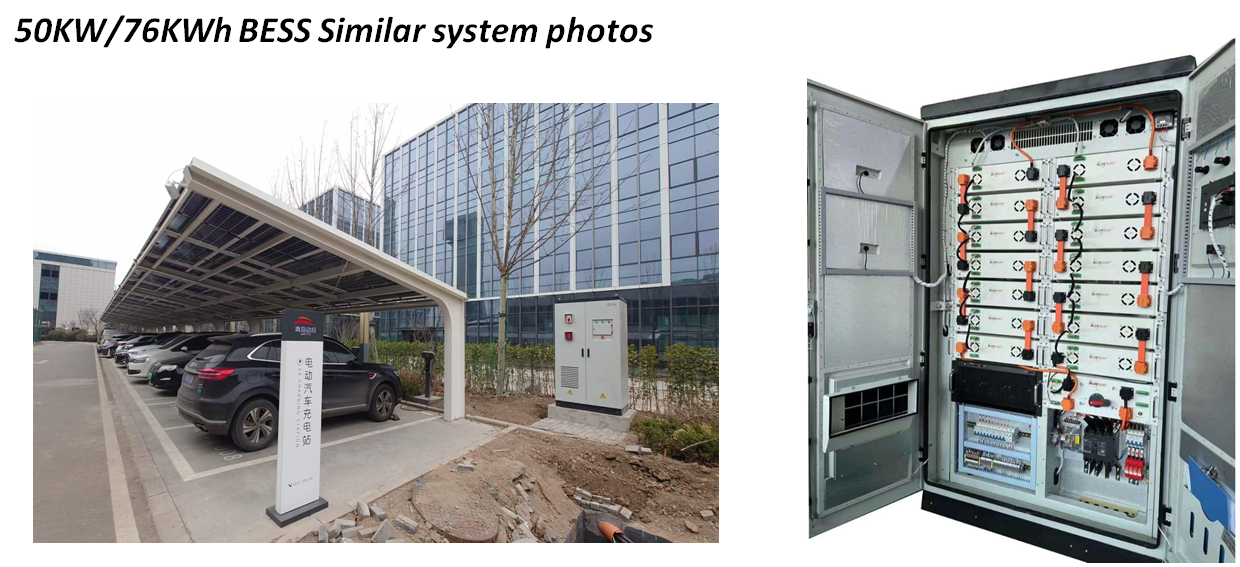

Product name: 50KW 76KWH battery energy storage system for solar hybrid system solution
| Battery parameter | ||
| Cell type | LFP 3.2V/280Ah | |
| Battery pack capacity | 14.3KWh | |
| Cluster capacity | 214.5KWH | |
| Battery voltage range | 627V~806V | |
| Battery cluster number | 1 | |
| AC parameter | ||
| Rated AC power | 100KW | |
| Max. power | 110KW | |
| THDI | 3% | |
| DC component | ＜0.5%Ipn | |
| Rated grid voltage | 380V | |
| Power factor | ＞0.99 | |
| Power factor range | -1~1 | |
| Rated frequency | 50Hz | |
| System parameter | ||
| Max. efficiency | ≥96% | |
| Charge/discharge speed | 0.5C | |
| Discharge depth | 95%DOD | |
| Cycle times | 6000 | |
| Charge/discharge switching time | ＜100ms | |
| Comm. port | RS485 | |
| Protection level | IP54 | |
| Cooling | force fan cooling | |
| Temperature | -25℃~55℃ | |
General
Capacity: 100KW/215KWh；
BESS uses customized outdoor cabinet; The container has battery compartment (battery cluster, BMS, illuminating system, air conditioner system, fire safety system and surge protection devices etc...); AC compartment (PCS, EMS, Transformer, Switches, Busbar, Cables etc...).
BESS can be using for peak shaving, energy back up, virtual capacity increase...
PCS Capacity
Total PCS capacity is 100KW; which contains 1*100KW PCS. Every single PCS connects to 1 battery cluster.
Battery cluster
280AH cell;
Battery Pack:1P16S,280AH×3.2V×16=14.3KWH; 3.2*16=51.2V
Battery cluster:1P15S,15×14.3=214.5KWh; 51.2*15=768V
1 battery cluster is 214.5KWH, total system is 214.5KWh, contains 1 battery clusters.
|
|
